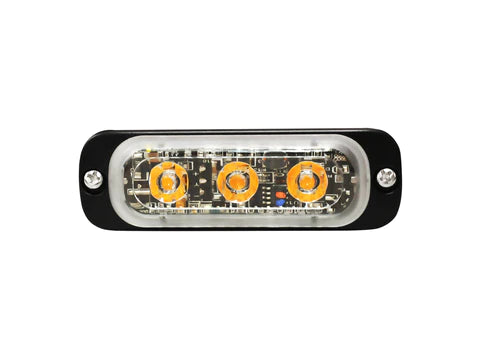

SLIM STROBE ST3

Super Thin ECE R65 3 LED warning lamp

Dimensions: 86mm (L) x 27mm (H) x 10.6mm (D)

Features:

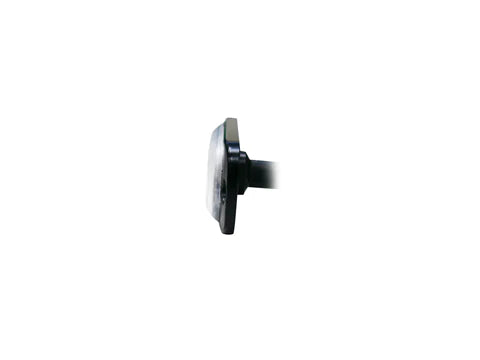

• 10.6mm super low-profile depth with powerful ECE R65 output
• 12/24V operation
• 16 built in flash patterns
• 100,000 rated hours of long-life LEDs
• Non-volatile flash pattern memory
• Multi-units synchronization in simultaneous or alternating flash
• Reverse polarity protection
• Weatherproof and shock proof

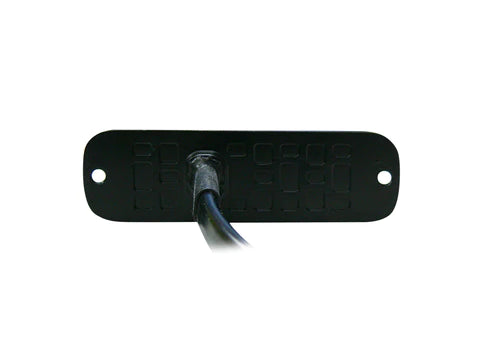

• Slim base design
• Aluminium base for durability and heat dissipation

Specifications:

• Approval: ECE R65 Class 1 (XA1, XB1, XR1); ECE R10
• IP Rating: IP68
• LEDs: 3 x high power LEDs
• Flash Patterns: 16
• Voltage: 12/24V
• Average Current: 0.3A @ 12V / 0.15A @ 24V (varies with flash patterns)
• Average Power: 3.55 Watts (varies with flash pattern)
• Max Current: 0.59A @ 12V / 0.3A @ 24V
• Max Power: 7.1 Watts
• Wires: Red-Vcc: 26.5cm (20AWG) / Black-GND: 26.5cm (20AWG) / Yellow-Flash Pattern: 26.5cm (20AWG)
• Recommended Fuse: 1A
• Max to Sync Together: Up to 15 lamps
• Colours Available: amber, clear or red
