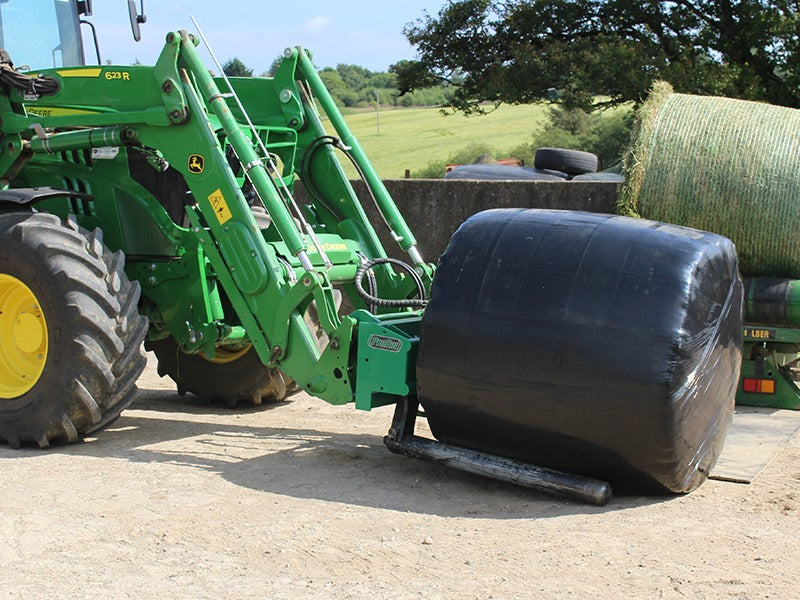

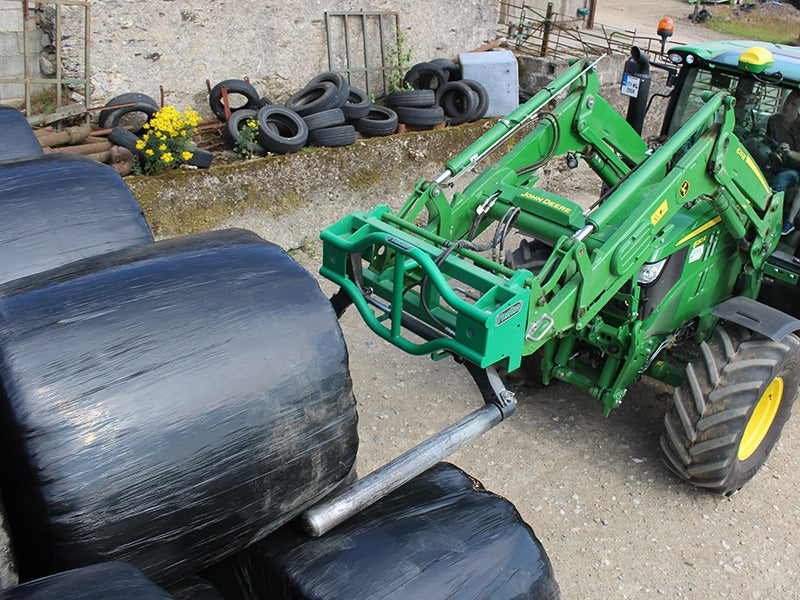

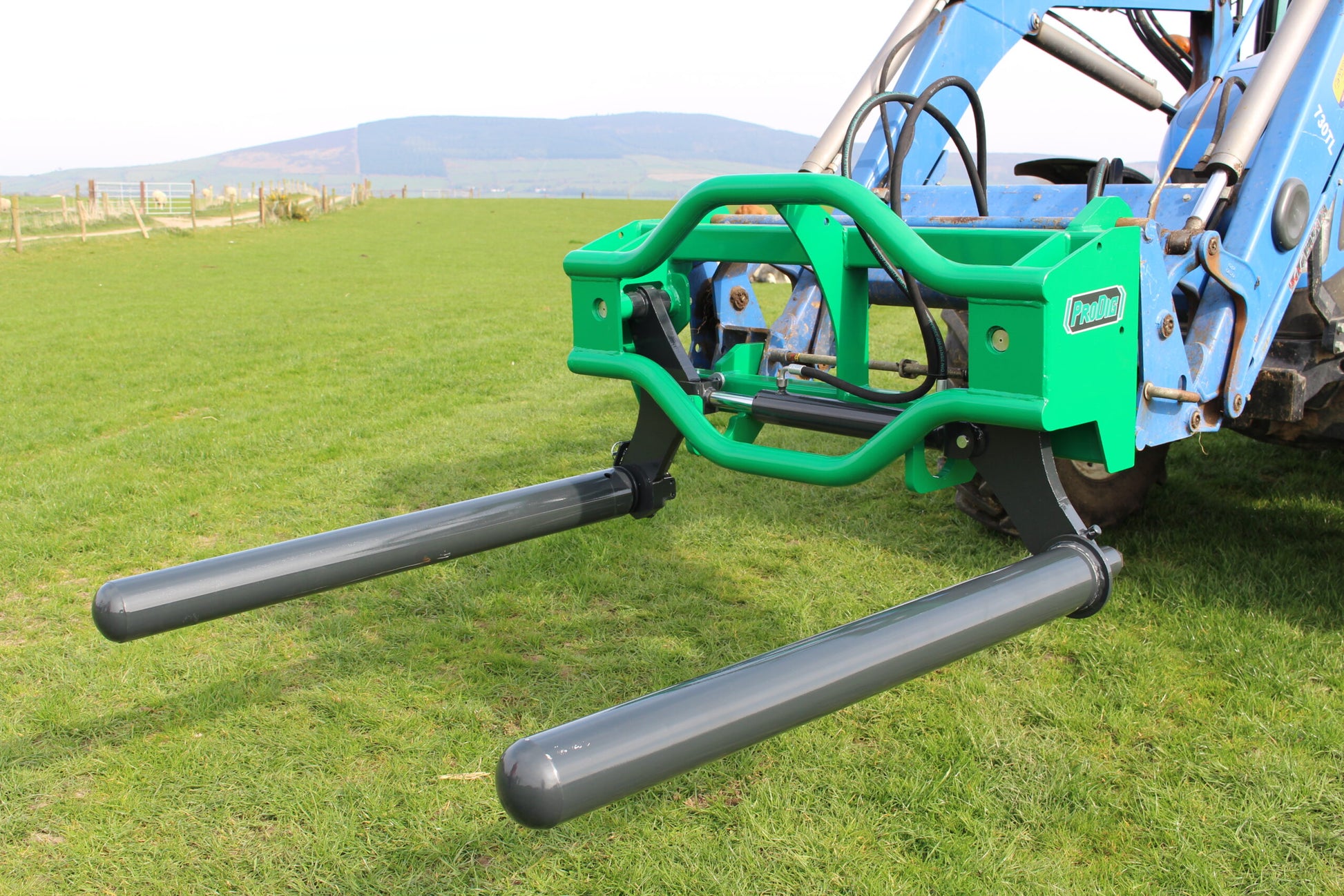

The Prodig Hydraulic Bale Handler is designed and manufactured for reliability and extremely long service life. The unit is manufactured with high operator visibility in mind, the main legs are engineered and fabricated from HARDOX plate and quick release large diameter rollers make this a fast, efficient and versatile attachment that can be fitted to tractor loaders or tele-handlers & articulated loaders.

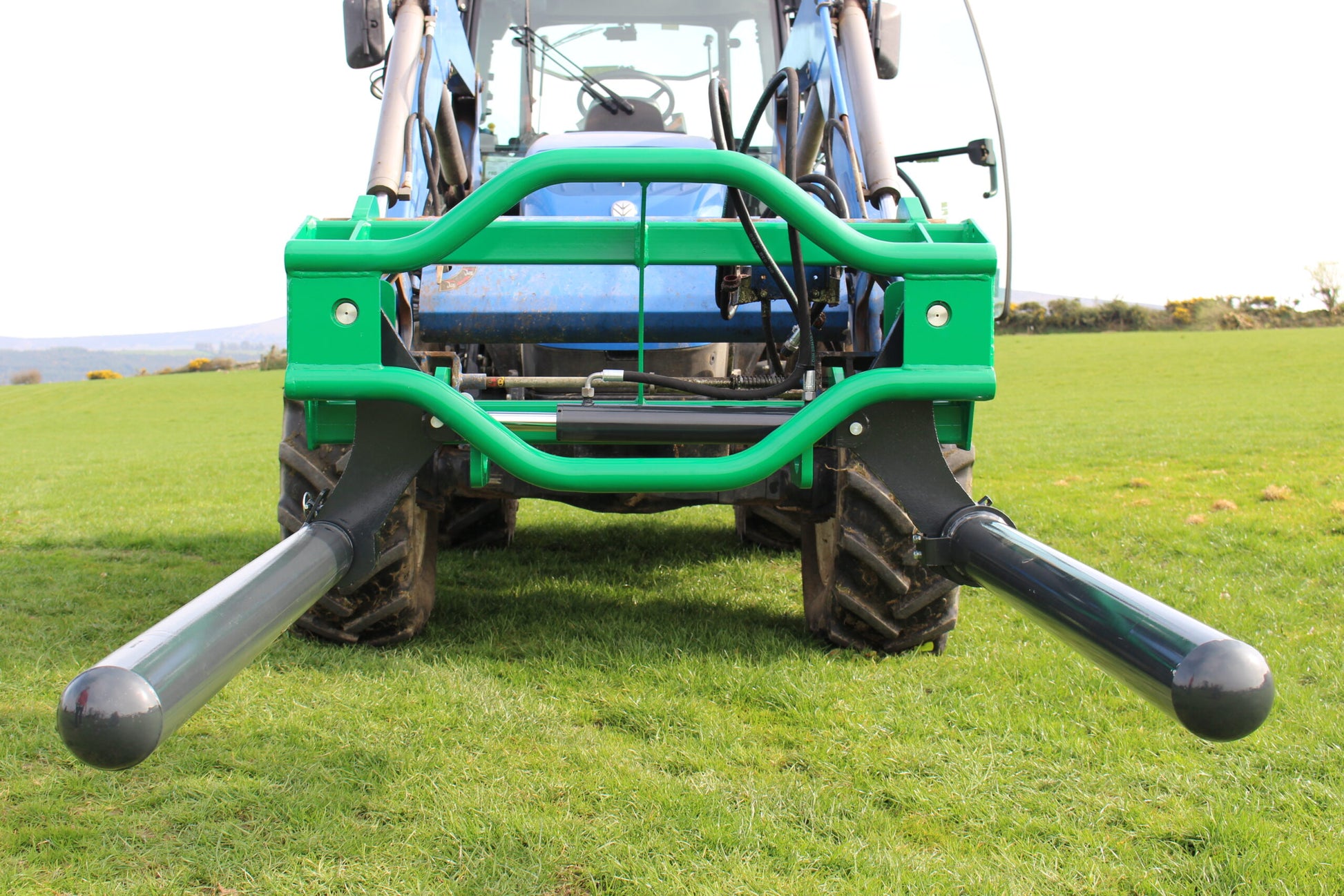

Narrow frame to allow for easy stacking and removal of bales without touching adjacent bales.
Tubular frame to give the user optimum visibility when in use.
Large 114mm rollers reduce plastic stress & ensure safe and secure handling of wrapped bales without damage.
Hardox heavy duty fabricated legs and heavy walled tine sleeve for long life.
Removable rollers to allow the bale handler to be used as a bale spike.
1250mm conus 2 tines as standard.
Bushings and grease points on all pivot points.
Under pivot point hydraulic cylinder configuration means the handler is capable of ripping bales apart during winter season to aid in feeding and reduce feeding time.
Open centers 1575mm, closed centers 815mm.
Uniquely designed bale handler means it is suitable for both tractors and telehandlers.

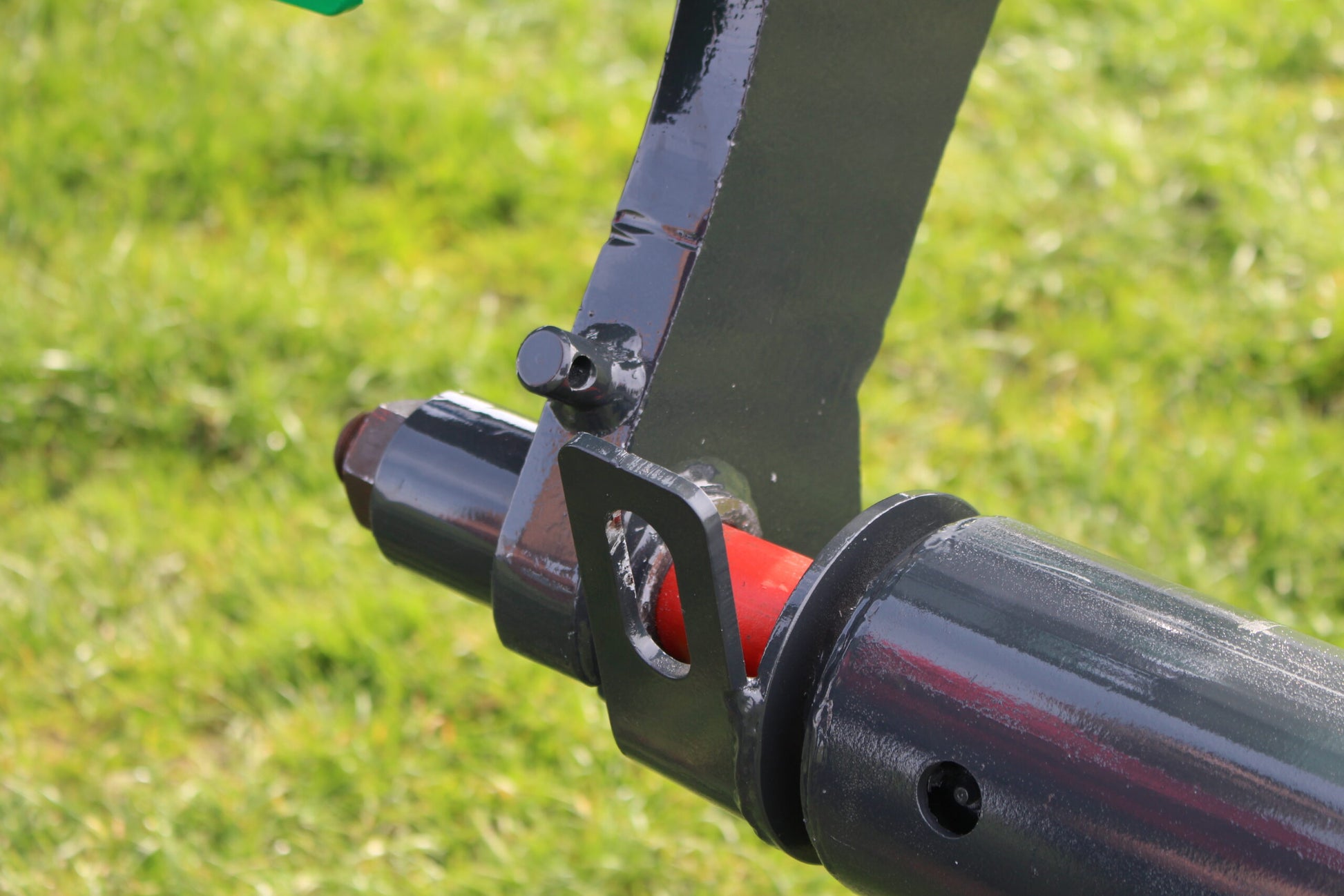

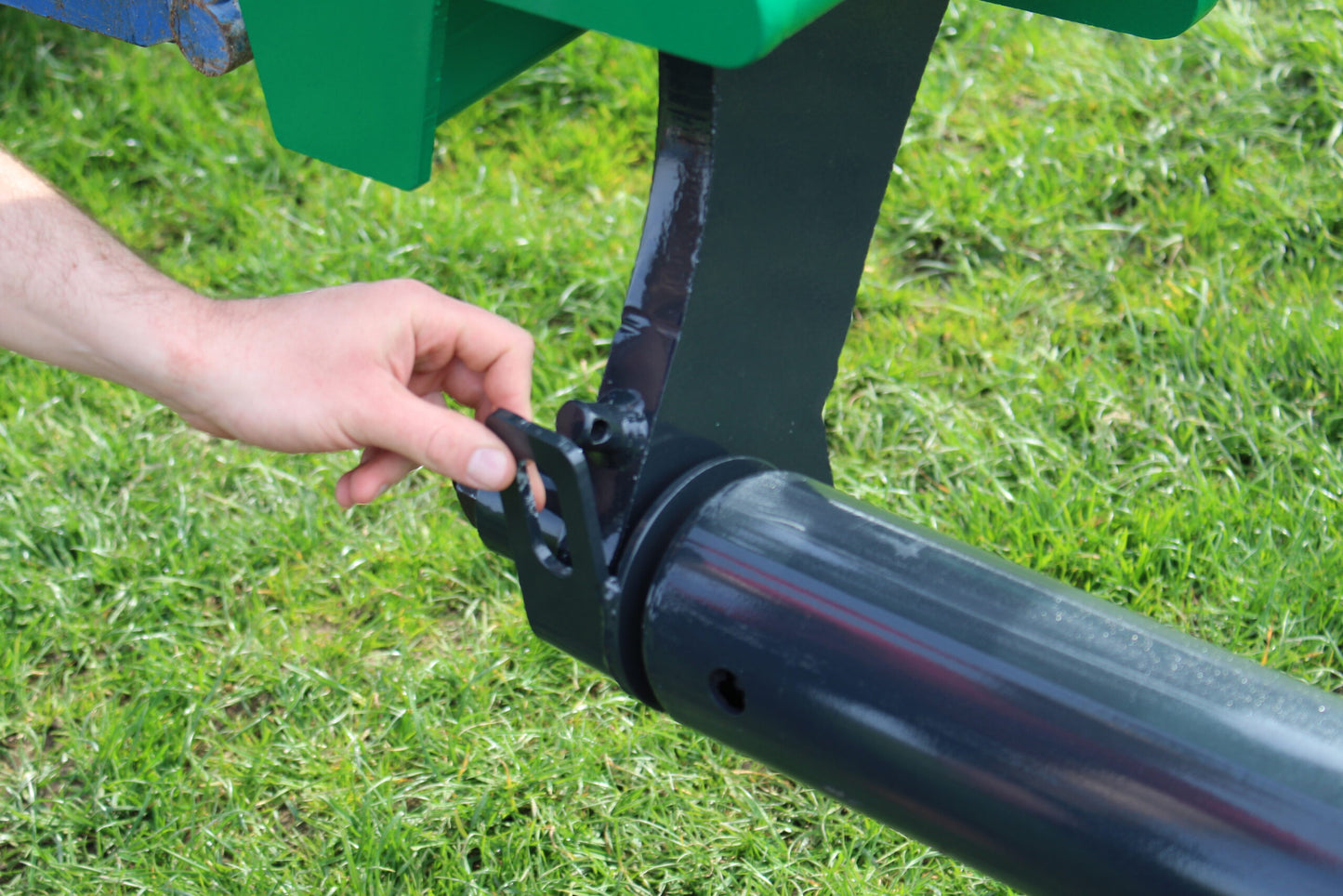

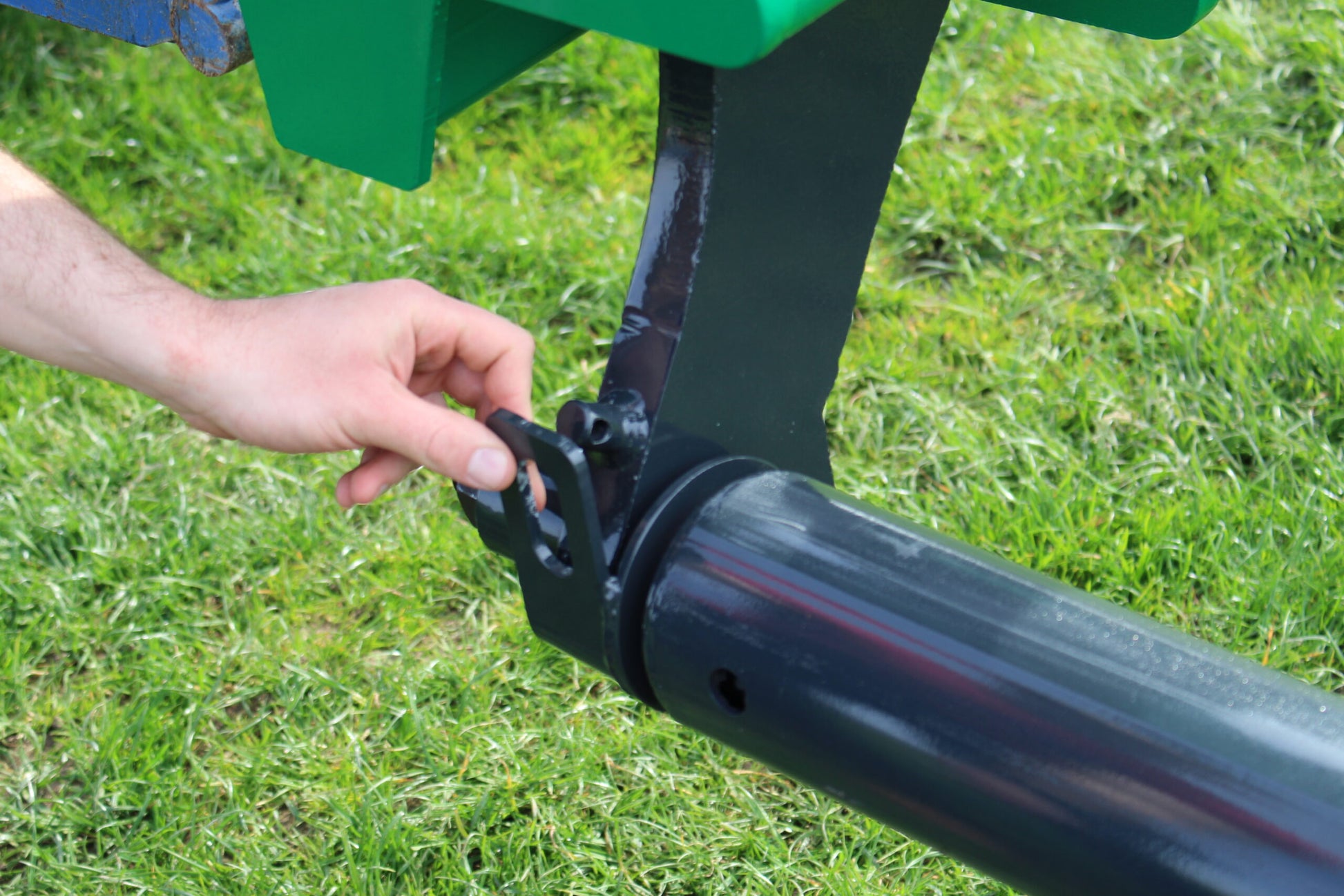

Optional – unique locking system on the tubes means removal takes seconds, without tools.
