FENDT BONNET AND UPPER CLUSTER LED HEADLIGHT SET - HIGH LOW BEAM

PRODUCT INFORMATION

LED HEADLIGHT SET WITH HIGH AND LOW BEAM FOR FENDT

HYPERIOS IS THE NEW HEADLIGHT SERIES. VERY COMPACT BUILT DUE TO THE COMBINATION OF LENS AND MIRROR OPTICS.

THIS SET INCLUDES AN ADAPTER CABLE TO CONNECT THE LIGHTS TO FENDT TRACTORS.

GENERAL CHARACTERISTICS

• Set: 2 x headlight high and low beam FENDT + 2 x adapter cable for FENDT
• Functions: high and low beam
• Housing: Powder-coated aluminum
• Bulb finish: PMMA
• OSRAM led chips
• Connection: 3-pin DEUTSCH DT connector, including adapter cable for fendt
• Lifetime : +30,000 hours
• IP rating: IP67 dust and waterproof
• EMC Radio Suppressed: CISPR Class 4
• Equipped with E-marking R10, R112

ELECTRICAL CHARACTERISTICS

• Wattage: 55W
• High beam power: 55W (including low beam)
• Low beam power: 30W
• Voltage: 10-32V

DIMENSIONS IN MM.

• Bulb length: 106mm
• Bulb height: 90mm
• Bulb width: 90mm

Part numbers :

• Hella: 1AL009998001 / 008191051 / 008193027
• Fendt: G334900160020

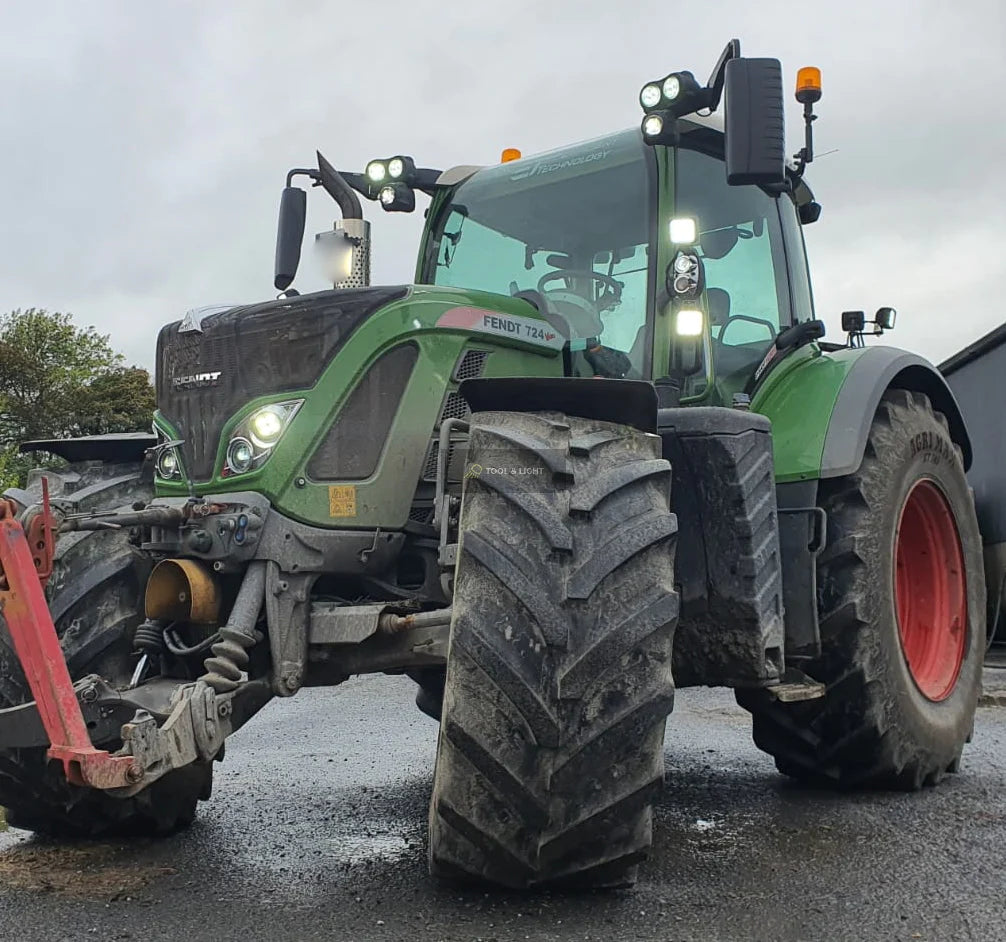

This Crawer led headlight fits the following tractors/models:

• Fendt 200 series S4
• Fendt 500 series SCR and S4
• Fendt 700 series SCR, S4 and S5
• Fendt 800 series S4
• Fendt 900 series S4 / S5
• Fendt 1000 series

Also fits the more modern Valtra and Steyr tractors with or without a small adjustment.

If you have a Deutz, New-Holland or Case, take a look at this product !

This Hyperios LED headlight is also available as single high beam or single low beam.
