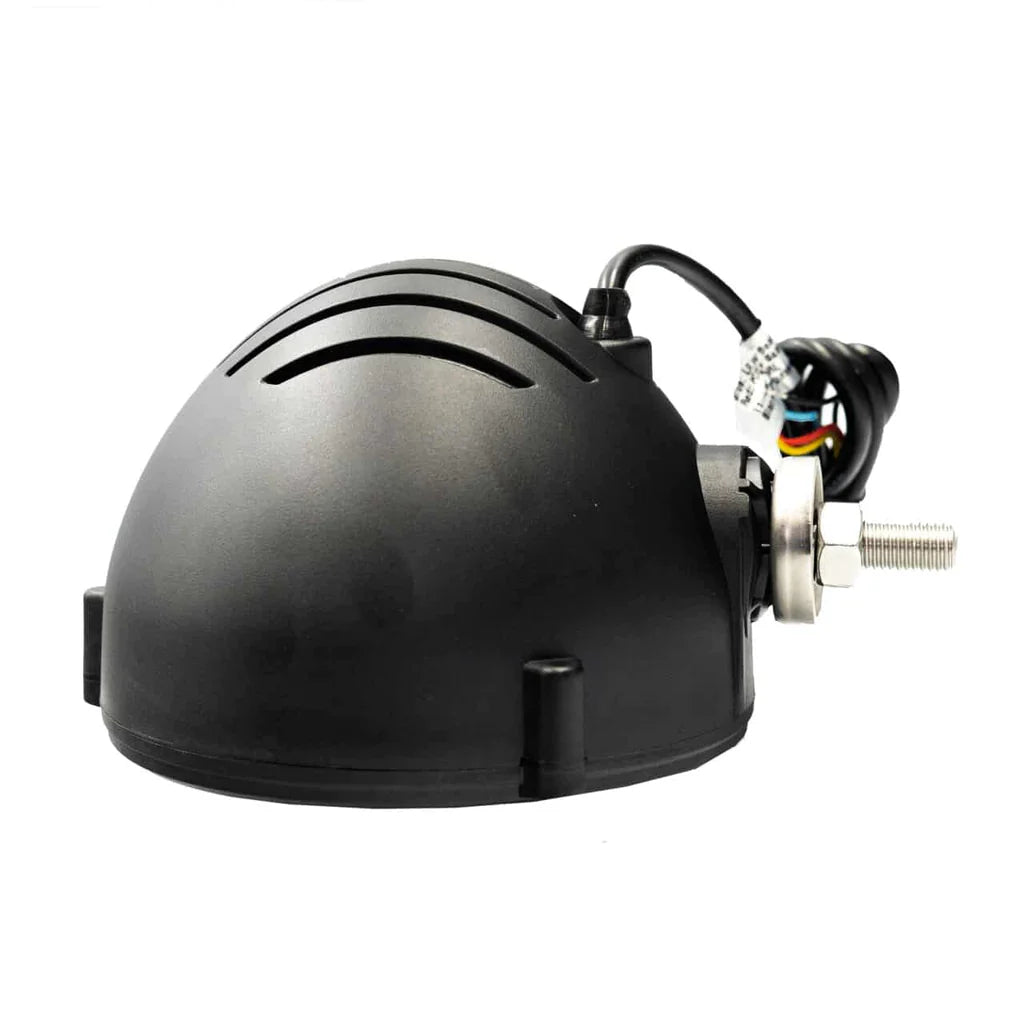

UNIVERSAL LED ROUND HEADLIGHT SET

UNIVERSAL LED ROUND HEADLIGHT SET

 30 WATT UNIVERSAL LED HEADLIGHT, EVERYONE'S FRIEND.

 A UNIVERSAL HEADLAMP WITH VERY ATTRACTIVE SPECIFICATIONS, WITH 3 FUNCTIONS, 30 WATT LED LIGHT AND 30,000 BURNING HOURS.

GENERAL CHARACTERISTICS

• Functions: Low beam, high beam and side light
• Burning position: Adjustable, All positions possible
• Lifespan: +30,000 hours
• IP rating: IP69 dust and moisture proof
• EMC Radio Disturbed
• Certificates: (E4) ECE R112

ELECTRICAL PROPERTIES

• Power: 30W
• Voltage: 10-30V

DIMENSIONS IN MM

• Lamp width: 151 mm
• Lamp height: 172 mm
• Thickness lamp: 126 mm

CONNECTION DIAGRAM:

• Blue: city light
• Red: low beam
• Yellow: high beam
• Black: Mass

This approved headlight unit is suitable for various applications. The light image is perfect and not dazzling to oncoming traffic.
