UNIVERSAL LED HEADLIGHT SET

  • €285,00
    Unit price per
Tax included. Shipping calculated at checkout.

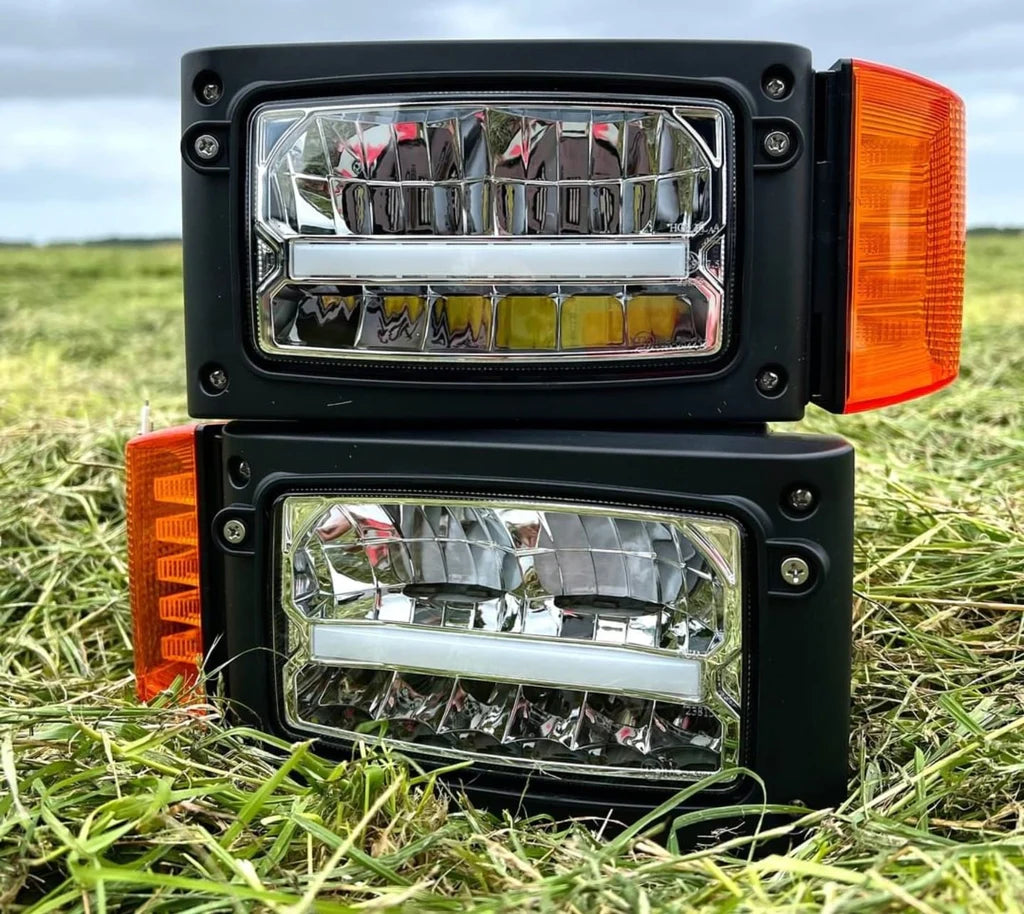

UNIVERSAL LED HEADLIGHT UNIT 9-32V 30W SET

THIS ROBUST HEADLIGHT SET CAN BE USED UNIVERSALLY ON VARIOUS VEHICLES MOSTLY LOADERS. WITH THE ADDED ADVANTAGE THAT IT IS A HEADLAMP WITH TURN SIGNAL IN ONE!

GENERAL CHARACTERISTICS:

  • Set: 1 x left headlight unit and 1 x right headlight unit
  • Functions: Low beam, high beam, parking light and turn signal
  • Connection: including 6-pole cable, 2 meters. Deutsch DT 6 pin connector (supplied separately)
  • Type: Universal
  • Lifespan: +30,000 hours
  • IP rating: IP67 dust and immersion proof
  • EMC Radio Suppressed: CISPR Class 4
  • With E-marking: R112, R10, R7, R6

TECHNICAL FEATURES:

  • Low beam light intensity: 1120 Lumen
  • High beam light intensity: 1510 Lumen
  • City light intensity: 112 Lumen
  • Turn signal light intensity: 231 Lumen

ELECTRICAL CHARACTERISTICS:

  • Low beam wattage: 18W
  • Wattage high beam: 30W
  • City light wattage: 4W
  • Wattage turn signal: 5W
  • Voltage: 9-32V

DIMENSIONS IN MM:

  • Width: 244.8mm
  • Height: 111.4mm
  • Depth: 118.8mm

COLOR SCHEME WIRES:

  • Brown wire: Positive turn signal
  • Gray wire: Negative turn signal
  • Red wire: Positive high beam
  • White wire: Positive low beam
  • Black wire: Negative headlight
  • Yellow wire: Positive side light
